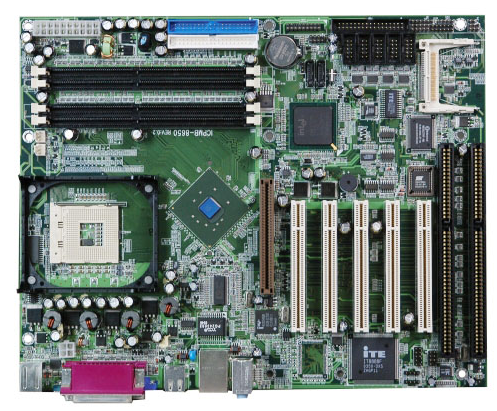

ICPMB-8650 CPU Board - ATX Mother Board, Socket 478 800MHz FSB with VGA, GbE, S-ATA, USB 2.0, 6 COM & Audio
Welcome to the ICPMB-8650 SOCKET 478 PENTIUM 4 Single Board Computer. The ICPMB-8650 board is an AGP/PCI form factor board, which comes equipped with high performance Processor and advanced high performance multi-mode I/O, designed for the system manufacturers, integrators, or VARs that want to provide all the performance, reliability, and quality at a reasonable price.
It’s AGP interface supports 0.8V/1.5V signaling with 8X/4X data transfers ,but it’s not support any 3.3V AGP-card. The integrated graphics controller provides 3D, 2D, and display capabilities.
ICPMB-8650 is supports one or two 64-bit wide DDR data channels. Available bandwidth up to 2.7GB/s for single-channel mode and 5.4GB/s in dual-channel mode.
For the application that needs high speed serial transmission, the ICPMB-8650 provides USB2.0 for your choice. The high speed USB2.0 host controller implements an ECHI interface that provides 480Mb/s bandwidth.
ICPMB-8650 is equipped with a high speed SATA disk interface. Besides its better performance than traditional IDE interface, it can also reduce the cabling of hard disk and supports longer cable
Part Number: ICPMB-8650GN V1.1
