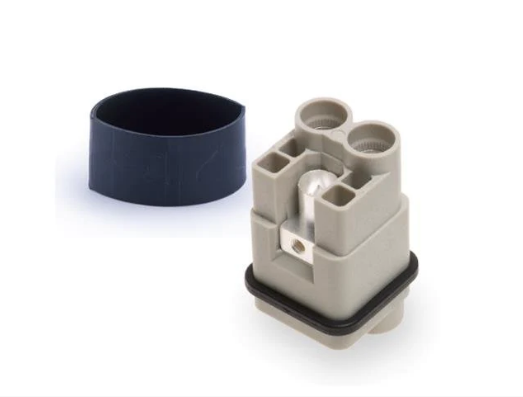

HQ-002.1-M (2.5-6.0mm2)

SPECIFICATIONS

Inserts
Number of contacts	2+PE
Electrical data acc. to EN 61 984
---Rated current	40A
---Rated voltage	830V
---Rated impulse voltage	6kV
---Pollution degree	3
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Contact resistance	≤1mΩ
Axial screw termination
---mm²	2.5-10mm²
---AWG	14-8
Tightening torque	1.8Nm
Stripping length	8⁺¹mm
