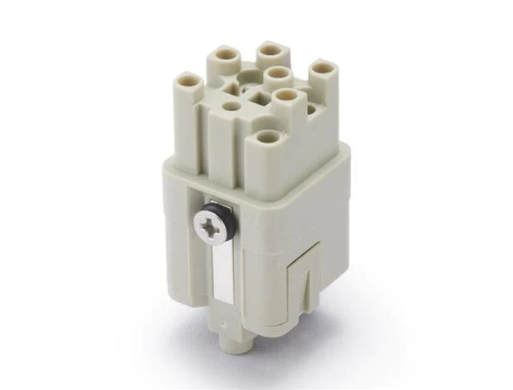

Series Q12/0 (C) Insert 12P+E - Size 3A - Female Crimp Termination 10A/400V
Article No. 130 012 020 0001
Industry No. 09120123101
Size: 3A
Series: Q12/0 (C)
Datasheet HQ-012/0-FC
SPECIFICATIONS
| Ferrule | |
| Connector pin count | 12+PE |
| Electrical data according to DIN EN 61984 | |
| -Rated current | 10A |
| - rated voltage | 400V |
| - Rated impulse voltage | 6KV |
| - pollution level | 3 |
| Voltage rating according to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| range of working temperature | -40℃...+125℃ |
| Flame retardant grade (UL94) | V0 |
| Pluggable times | ≥500 |
| pin | |
| Material | copper alloy |
| surface treatment | silver plated gold plated |
| Contact resistance | ≤3mΩ |
| cold press connection | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| PE screw connection | |
| ---mm2 | 0.5-2.5mm2 |
| ---AWG | 20-14 |
ACCESSORIES
Please Click here to view list of Accessories for Size 3A
