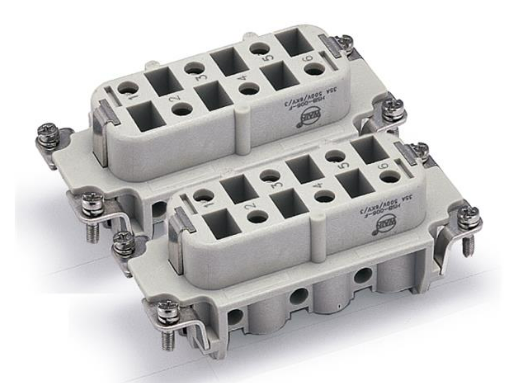

HSB-006-F (7-12)

SPECIFICATIONS

Inserts
Number of contacts	12(2x6)+PE
Electrical data acc. to EN 61 984
---Rated current	35A
---Rated voltage conductor - ground	400V
---Rated voltage conductor - conductor	690V
---Rated impulse voltage	6kV
---Pollution degree	3
---or	35A 500V 6kV 3
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	1.5-6mm²
---AWG	10
---Tightening torque	1.2Nm
