Hirschmann
Configurator Description:

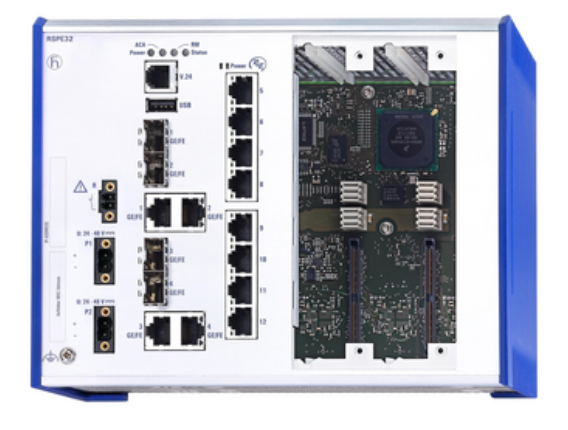

The compact and extremely robust RSPE switches comprise a basic device with eight twisted pair ports and four combination ports that support Fast Ethernet
or Gigabit Ethernet. The basic device – optionally available with the HSR (High-Availability Seamless Redundancy) and PRP (Parallel Redundancy Protocol)
uninterruptible redundancy protocols, plus precise time synchronization in accordance with IEEE 1588 v2 - can be extended to provide up to 28 ports by adding two media modules.
Part Number: 942084006
Product Description:
Managed Fast/Gigabit Industrial Ethernet Switch, fanless design Power over Ethernet (PoE) support with up to 24 Ports and 120 Watt and Enhanced Type (PRP, Fast MRP, HSR, DLR,
NAT, TSN) , with HiOS Release 08.7
Port type and quantity:
Ports in total up to 28 Base unit: 4 x Fast/Gigbabit Ethernet Combo ports plus 8 x Fast Ethernet TX ports expandable with two slots for media modules with 8 Fast Ethernet ports each
DATA/SPECS
Download PDF
