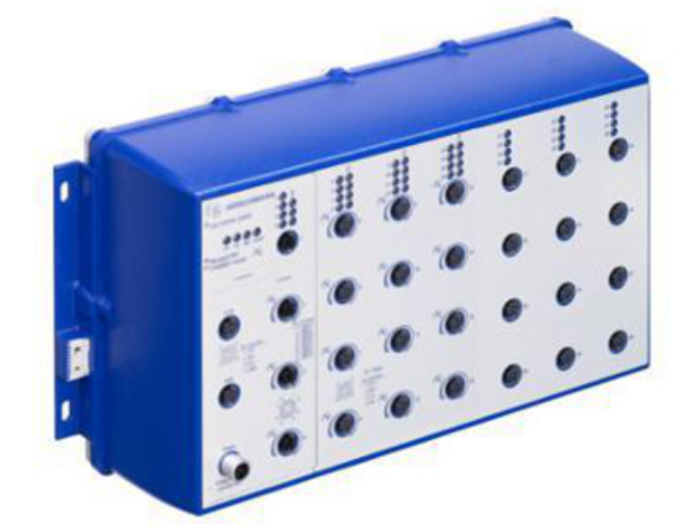

OCTOPUS 4GE-24FE-PoE-HV-Train - 942133005 - (Product code: OS34-152404T6T6T5-TN9S999HHSE2AXX.X.XX)

Hirschmann

Configurator Description:

Specially designed for use at the field level with automation networks, the switches in the OCTOPUS family ensure the highest industrial protection ratings (IP67, IP65 or IP54) regarding mechanical stress, humidity, dirt, dust, shock and vibrations. They are also capable of withstanding heat and cold, while fulfilling the strictest fire prevention requirements. The rugged design of the OCTOPUS switches are ideal for installing directly on machinery, outside of control cabinets and distribution boxes. The switches can be cascaded as often as required – permitting implementation of decentralized networks with short paths to the respective devices to considerably reducing costs for cabling.

Part Number: 942133005

Product Description:

Managed IP65 / IP67 switch in accordance with IEEE 802.3, store-and-forward-switching, HiOS Layer 2 Advanced , Fast-Ethernet and Gigabit-Ethernet Type , power sourcing equipment in accordance with IEEE 802.3at (PoE+ inline power) , electrical Gigabit Ethernet uplink-ports.

Port type and quantity:

28 ports in total; ; TP-cable, auto-crossing, auto-negotiation, auto-polarity. Uplink ports 10/100/1000BASE-TX, M12 "X"-coded, 8-pins ; Local ports 10/100BASE-TX M12 "D"-coded, 4-pin; 15 x PoE(+) Ports (phantom power)
