Hirschmann
Fast Ethernet Ports with/without PoE The RS20 compact OpenRail managed Ethernet switches can accommodate from 4 to 25 port densities and are
available with different Fast Ethernet uplink ports – all copper, or 1, 2 or 3 fiber ports. The fiber ports are available in multimode and/or singlemode. Gigabit
Ethernet Ports with/without PoE The RS30 compact OpenRail managed Ethernet switches can accommodate from 8 to 24 port densities with 2 Gigabit ports
and 8, 16 or 24 Fast Ethernet ports. The configuration includes 2 Gigabit ports with TX or SFP slots. The RS40 compact OpenRail managed Ethernet switches
can accommodate 9 Gigabit ports. The configuration includes 4 x Combo Ports (10/100/1000BASE TX RJ45 plus FE/GE-SFP slot) and 5 x 10/100/1000BASE
TX RJ45 ports

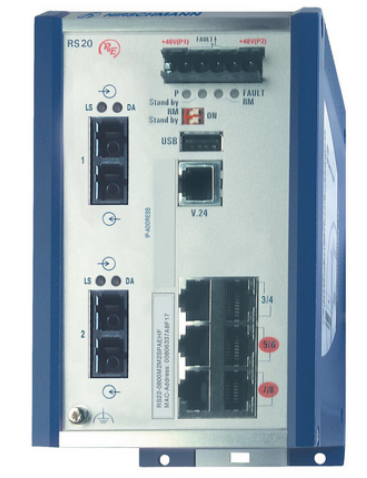

Part Number: 943434069
Product Description:
Managed Fast-Ethernet industrial PoE switch for DIN rail, 4 x PoE ports (IEEE802.3af) store-and-forward-switching, fanless design, metal housing ; Software Layer 2 Enhanced
Port type and quantity:
8 ports in total: 6 x standard 10/100 BASE TX, RJ45 ; Uplink 1: 1 x 100BASE-FX, MM-SC ; Uplink 2: 1 x 100BASE-FX, MM-SC
DATA/SPECS
Download PDF
