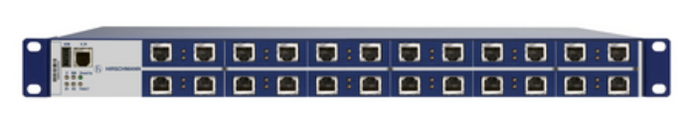

MAR1020-99MMMMMMMMMMMMMMMMMMMMMMMMFMMHPH - 943940001

Hirschmann

Configurator Description:

The MACH1000 is available in a 24 port custom configurable design with 2 or 4 additional Gigabit uplink (RJ45 and/or SFP for fiber) and PoE ports. These switches are available with Layer 2. The fanless design and extremely efficient components are optimized for minimal heat generation and high MTBF (mean
time between failure).

Part Number: 943940001

Product Description:

Industrial managed Fast Ethernet Switch according to IEEE 802.3, 19" rack mount, fanless Design, Store-and-Forward-Switching

Port type and quantity:

In total 24 Fast Ethernet ports \\\ FE 1 and 2: 100BASE-FX, MM-SC \\\ FE 3 and 4: 100BASE-FX, MM-SC \\\ FE 5 and 6: 100BASE-FX, MM-SC \\\ FE 7 and 8: 100BASE-FX, MM-SC \\\ FE 9 and 10: 100BASE-FX, MM-SC \\\ FE 11 and 12: 100BASE-FX, MM-SC \\\ FE 13 and 14: 100BASE-FX, MM-SC \\\ FE 15 and 16: 100BASE-FX, MM-SC \\\ FE 17 and 18:100BASE-FX, MM-SC \\\ FE 19 and 20: 100BASE-FX, MM-SC \\\ FE 21 and 22: 100BASE-FX, MM-SC \\\ FE 23 and 24: 100BASE-FX, MM-SC
