Cisco
CISCO SYSTEMS 800-09311-03 B0 1 PORT ETHERNET CARD
Overview

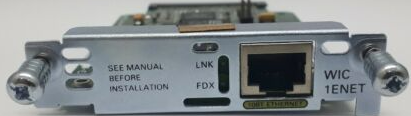

The Cisco Single-Port Ethernet WAN Interface Card (WIC-1ENET) offers customers using a Cisco 1700 series router the option of an additional Ethernet port for enabling broadband Internet access or deployment of a perimeter LAN or demilitarized zone (DMZ). Ideally suited for small and medium businesses and small branch offices, the Ethernet WIC offers a cost-effective method for expanding the capability of the Cisco 1700 series router.
The Cisco 1700 series modular access routers with WIC-1ENET offers support for virtual private networks (VPNs), voice over IP (VoIP), broadband, and combined voice and data networking. The addition of a WIC-1ENET offers a cost-effective alternative for implementing new broadband services, while preserving investment in existing equipment.
Specification
- Product Name: 1-Port Serial WIC
- Product Type: WAN Interface Card (WIC)
- Compatibility: Cisco 1700 Series Router
- Product Model: WIC-1ENET
- Dimensions: 0.8" Height x 3.1" Width x 4.8" Depth
- Application/Usage: Data Networking, Wide Area Network
- Interfaces/Ports: 1 x 10Base-T WAN
- Interfaces/Ports Details: 1 x RJ-45 10Base-T Network WAN
- Data Transfer Rate: 10 Mbps Ethernet
- Connectivity Media: Twisted Pair 10Base-T
- Interface Type: 10Base-T
- Number of Ports/Channels: 1
Part Number: 800-09311-03 - Cisco Interface card
