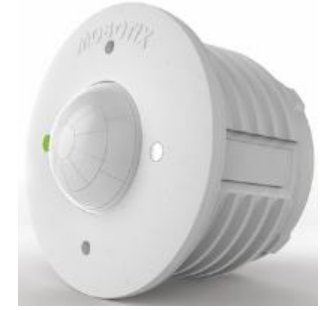

MX-MULTISENSE1-EXT
Weatherproof multi-sensor module with four environmental sensors: passive infrared sensor PIR, brightness sensor, temperature sensor (±0.3°C / 0.18°F) and acoustic sensor (level of sound waves) • Camera connection and supply via MxBus: power consumption approx. 0.3 W, MxBus cable length up to 100 m / 330 ft. • Status LED • Compact device using a screwable sensor module housing • Easy installation without accessories (e.g., in suspended ceilings) • Compatible with all MOBOTIX mounts for sensor modules and standard mounts for recessed spotlights • Protection class IP66 • IK05 • Ambient temperature -20 to 60°C / -4 to 140°F • Housing color: white
Environmental Sensors
Passive Infrared Motion Sensor (PIR):
Max. coverage (H x V): 100° x 60° (max. distance up to 1 m), 80° x 40° (up to 5 m), 10° x 10° (up to 8 m); Max. distance: 9 m (tangential horizontal or diagonal movement), 7 m (tang. vertical movement), 4 m (radial movement directly to/from PIR)
Temperature Sensor:
Measures ambient temperature with a time delay of max. 15 min; display accuracy ±0.1 °C
Illumination Sensor:
Registers illumination levels from 0 to 44200 lx (Lux); max. coverage (H x V): 100° x 100°
Noise Sensor:
Detects sounds > 50 dB SPL (Sound Pressure Level, tested at a distance of 70 cm, longer distances possible); adjustable trigger corresponds SPL of 50 to 110 dB- Choosing a selection results in a full page refresh.
