Mobotix MX-Q24M-SEC-NIGHT-N22

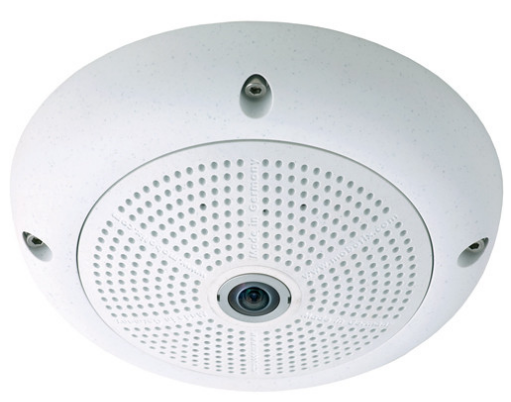

he MOBOTIX Q24M-Sec-Night Hemispheric Camera with N22 Night Sensor (White) features a single L22 (22mm focal length) super wide angle lens with 90° horizontal field of view for monitoring an entire room.
With minimum illumination of 0.005 lux, the camera’s N22 B&W sensor ensures that even minute details are captured during night time at a resolution of up to 1280 x 960 (30 fps).

The integrated distortion correction software corrects the convex image at the borders so the viewer can see images in normal perspective. With the Virtual PTZ feature, the user can easily navigate and examine specific areas of a picture without using a manual joystick.

The microSD slot accepts cards up to 32 GB for on-board storage of high-quality videos with audio. In case of an alarm, the built-in microphone records the sound independent of the image rate, allowing for better analysis of a situation. Bi-directional communication is possible via the loudspeaker. The camera can be powered from the network itself via an Ethernet cable without any extra wiring for auxiliary power outlets. In addition, this camera can record videos up to 1 TB on any Windows, Linux or Mac-based system over the network.

The Q24M-Sec Hemispheric Camera functions smoothly in temperatures ranging from -22 to 140°F (-30 to 60°C). The camera is IP65-certified which means that it will remain protected from dust and water.

Camera System
Fully digital B&W CMOS and 22mm super wide angle lens (90° horizontal/67° FOV) for wide coverage of the monitoring location
Ideal for monitoring multiple gas pumps or elevators without the need for multiple cameras
N22 B&W Night sensor with a minimum illumination of 0.005 lux captures clear images at a resolution up to 1280 x 960 (30 fps)
Exposure
Minimum and maximum exposure times can be set between 0.125 ms and 1 s
User-definable exposure window for optimum adjustment to the areas of interest
Backlight compensation, automatic contrast control, night vision enhancement, white balance, and sharpness
Image Format
B&W image scalable from 1280 x 920 to 160 x 120
In-camera distortion correction rectifies the convex image at the borders so the viewer can see images in the usual perspective
Factory-preset view modes: Normal, Surround, Panorama, Panorama Focus, and Double Panorama (with panorama correction)
Selectable image formats (for instance, 1000 x 200 for skyline)
Time-controlled masking of image areas
Image Memory
Internal 64 MB image memory capacities for approximately 300 3MP, 600 1 MP, 2500 VGA, and 4000 CIF images
microSD slot for memory expansion to 32 GB
Event and/or time-controlled recording
Adjustable number of pre-alarm and post-alarm images
Recording
Decentralized concept allows a PC to be only used for viewing, not for analysis or recording
Camera uses the microSD card to store footages recorded in response to an event even without the PC being switched on
Camera-controlled recording up to 1 TB on Windows / Linux / Mac systems over the network
Adjustable ring buffer size and storage time
MxPEG: optimized codec for network video
Event / permanent recording (MxPEG / M-JPEG)
Event-controlled frame rate from 0.2 to 30 Hz
Video Management
Video streaming / administration via web browser
Up to 30 cameras as MultiView in web browser
4 simultaneous web browser operating modes: HTML / JavaScript with M-JPEG, streaming (Java)
ActiveX (MxPEG), PDA-optimized pages
PDA interface with HTML only (Pocket PC)
Event search by time, date, and event type
Software installation on PC not necessary
MxControlCenter 2.1 (Windows) control room software and MxEasy (Windows / Mac) video management software included
Administration
Convenient administration via web browser
User-definable FTP / e-mail / VoIP profiles
User / group management
User-definable access levels
IP address filter, IEEE 802.1x, intrusion detection
Secure access via HTTPS / SSL
Event Logic
Event triggered by motion in definable video sensor areas, temperature, exposure situation, IO contacts (via ExtIO expansion module), audio level (via ExtIO expansion module), network message (IP Notify), and definable time functions
Logical linking of events
Time-dependent event and standby control
Alarm Signaling
Visual / audio alarm notification
Voice output via internal / external audio
Custom voice messages can be recorded
Notification via e-mail / FTP
VoIP calling with Video SIP (also in browser)
TCP / IP message on IP port
High-Quality Audio
Integrated 4 W loudspeaker with microphone
IP telephony (SIP), cellular network via gateway
IP voice announcement with DHCP
Lip-synchronous audio recording (MxPEG)
Housing
White fiberglass reinforced and shock-resistant PBT
Works with D22/D24 accessories like in-ceiling set, on-wall set, and wall mount
Power Supply
Power supply via Ethernet cable
4.5 W power input
No heater / motors, low UPS costs
Variable PoE class based on operating mode (PoE class 1, 2 or 3)
