F4-08AD

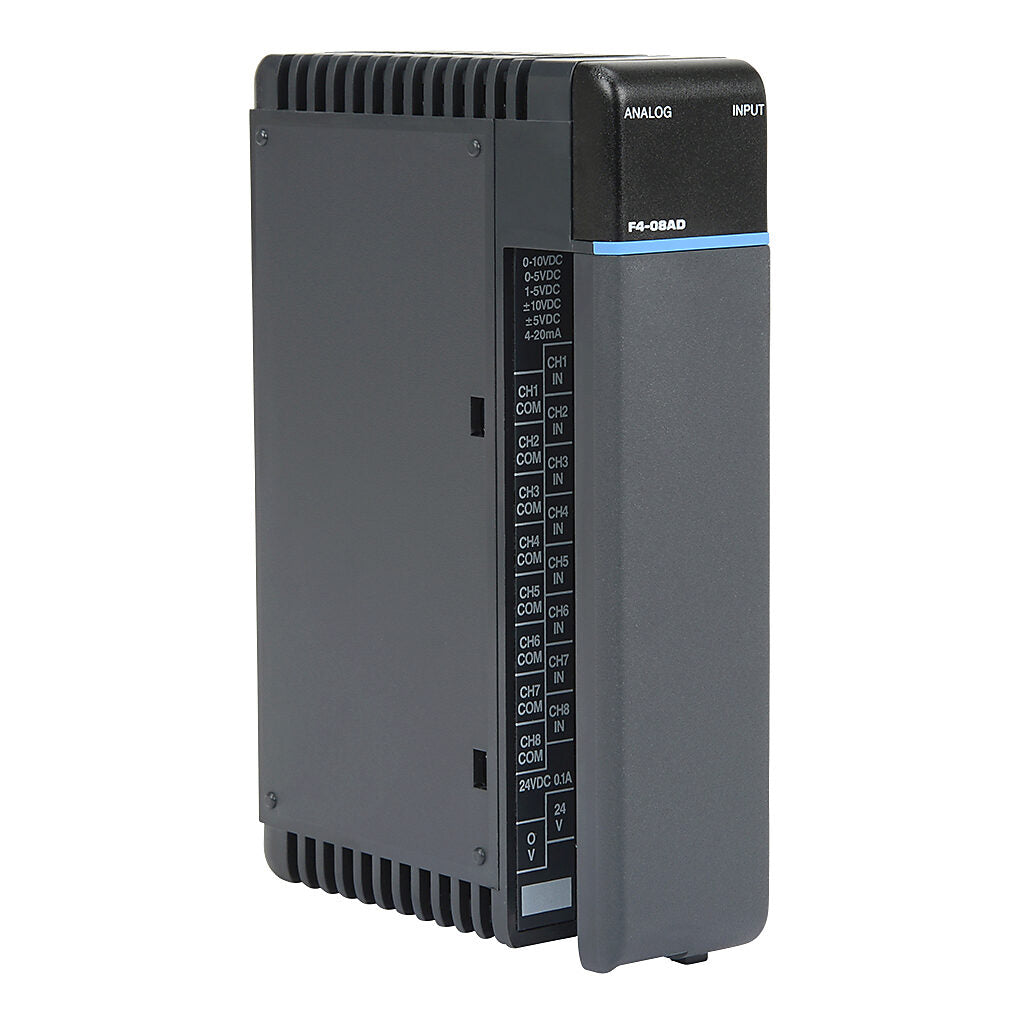

The F4-08AD 8-Channel Analog Input Module is a 8-channel analog input module.

Channels: 8. The channels are single ended. One common is available. The input ranges are from 0 to 5V, and from 0 to 10V, and from 1 to 5V, 5V, and 10V. The amperage is between  0 and 20 mA, and between 4 and 20 mA. Four channels per scan is the maximum rate for the PLC update. The input points requirement is 16 (X) input points total 12 binary data bits, 3 active channel bits. Sixteen discrete input points is the requirement of the F4-08AD, 8-Channel Analog Input Module. The F4-08AD can be installed in any slot in a DL405.

When you factor the number of analog modules, keep in mind the available power budget and discrete I/O points.

75 mA (power from base) is the value to consider for the power budget for the F4-08AD, 8-Channel Analog Input Module.  The environmental air requirement is no corrosive gases are allowed. The F4-08AD, 8-Channel Analog Input Module contains valuable hardware features.

The analog inputs are optically isolated from the PLC logic.

The terminal block is easily removable.

All channels can be read in one scan, if a DL440 or DL450 CPU is used.

Part Number: F4-08AD
