D0-05DD-D

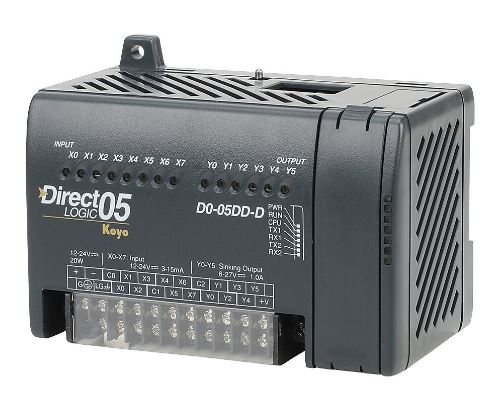

The DL05 Micro PLC Model D0-05DD-D has two RS–232C communication ports and 8 DC inputs and 6 DC outputs.

Port 1 on the D0-05DD-D is a 6-pin modular connector that can be connected to a programming device containing optional programming software. Port 2 is a 6-pin modular connector and it offers RS-232 communications only.

The DL05 Micro PLC D0-05DD-D offers data storage in V-memory in 16-bit registers and advanced internal diagnostics.

The external power requirement of the DL05 Micro PLC Model D0-05DD-D is 12-24 VDC, 20 W maximum. The input voltage range is 10.8-26.4 VDC. The operating voltage range is 12-24 VDC.  Inputs are organized into two banks of four. Each bank has an isolated common terminal and can be configured as either sinking or sourcing inputs.

The output voltage range is 5-30 VDC and the operating voltage range is 6-27 VDC. The six current sinking DC output channels use terminals on the right side of the connector. All outputs share the same electrical common.

The ambient operating temperature is 32ºF-131ºF (0º-55ºC) and the ambient humidity is 5 to 95% relative humidity (non-condensing).

The D0-05DD-D features operating modes that are accessed through a switch on the device and are available from a handheld programming device, or optional DirectSOFT 5 programming software.

Part Number: D0-05DD-D
