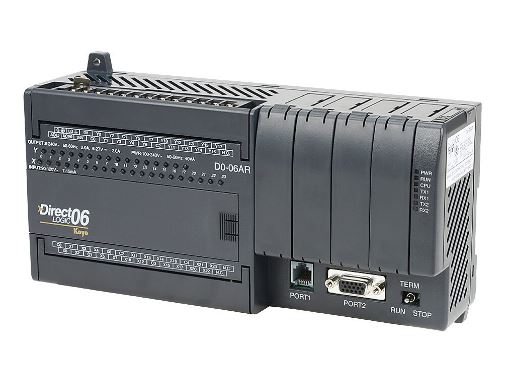

D0-06AR

The DL05 Micro PLC Model D0-06AR has one RS–232C communication port and one multi-function RS232C/RS422/RS485 port. The D0-06AR has 20 AC inputs and 16 relay contact outputs.

The D0-06AR features operating modes that are accessed through a switch on the device or are available from a handheld programming device or optional DirectSOFT 5 programming software. The modes enable programming functions.

The external power requirement is 100-240 VAC/50-60 Hz, 40 VA maximum. The input voltage range is 80-132 VAC, 47-63 Hz. The operating voltage range is 90-120 VAC, 47-63 Hz. Inputs are organized into five banks of four. Each bank has a common terminal.

The relay output voltage range is 5-264 VAC (47-63 Hz), 5-30 VDC and the operating voltage range is 6-240 VAC (47-63 Hz), 6-27 VDC. Outputs are organized into four banks of four normally-open relay contacts. Each bank has a common terminal.

The ambient operating temperature is 32ºF-131ºF (0º to 55ºC) and the ambient humidity is 5 to 95% relative humidity (non-condensing).

Port 1 and Port 2 on the D0-06AR can be connected to a handheld programming device, an operator interface, or other device containing optional programming software, such as DirectSOFT 5. Port 1 on the D0-06AR is a 6-pin modular connector. Port 2 is a 15-pin HD-sub connector.

Part Number: D0-06AR

DATA/SPECS
Download PDF

The DL05 Micro PLC D0-06AR offers data storage in V-memory in 16-bit registers and advanced internal diagnostics.
