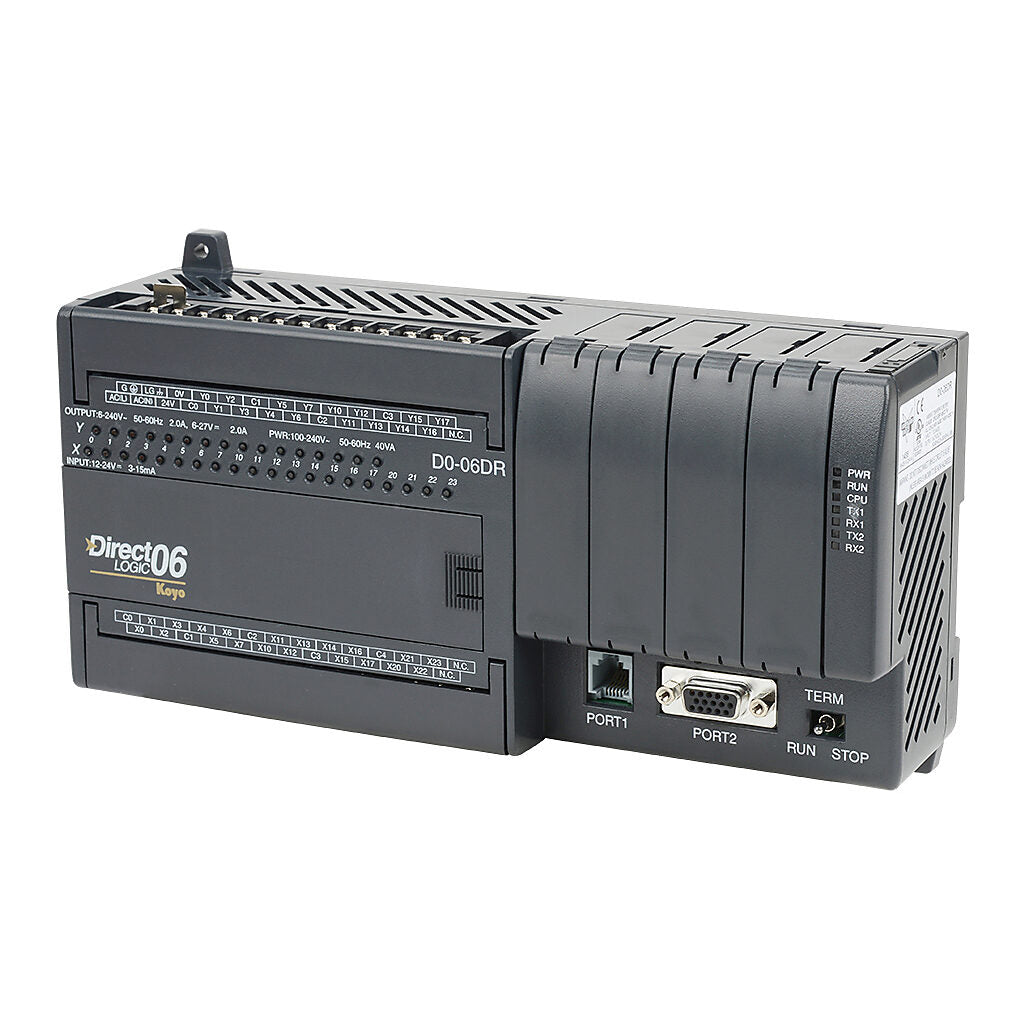

D0-06DR

Operating modes are available on DL05 Micro PLC Model D0-06DR that enable programming functions. The modes are available through a handheld device.

The power requirement for external input must be between 100 and 240 VAC/50-60 Hz, 40 W maximum. The range for the input voltage is between 10.8 and 26.4 VDC.

The operating voltage is rated as between 12 and 24 VDC. Five banks of four is the arrangement of the inputs. One isolated common terminal is provided for each bank. Each bank can be configured as sinking or sourcing inputs.

The relay output voltage range is 5-264 VAC (47 -63 Hz), 5-30 VDC  and the operating voltage range is 6-240 VAC (47-63 Hz), 6-27 VDC. Outputs are organized into four banks of four normally-open relay contacts. Each bank has a common terminal.

The DL05 Micro PLC Model D0-06DR has one RS–232C communication port and one multi-function RS232C/RS422/RS485 port. 20 DC inputs and 16 relay contact outputs are provided on the D0-06DR.

You can connect the D0-06DR to a handheld device that contains  DirectSOFT 5. Port 1 on the D0-06DR is a 6-pin modular connector. Port 2 is a 15-pin HD-sub connector.

The DL05 Micro PLC D0-06DR offers V-memory data storage and diagnostics

Part Number: D0-06DR
