D0-06DR-D

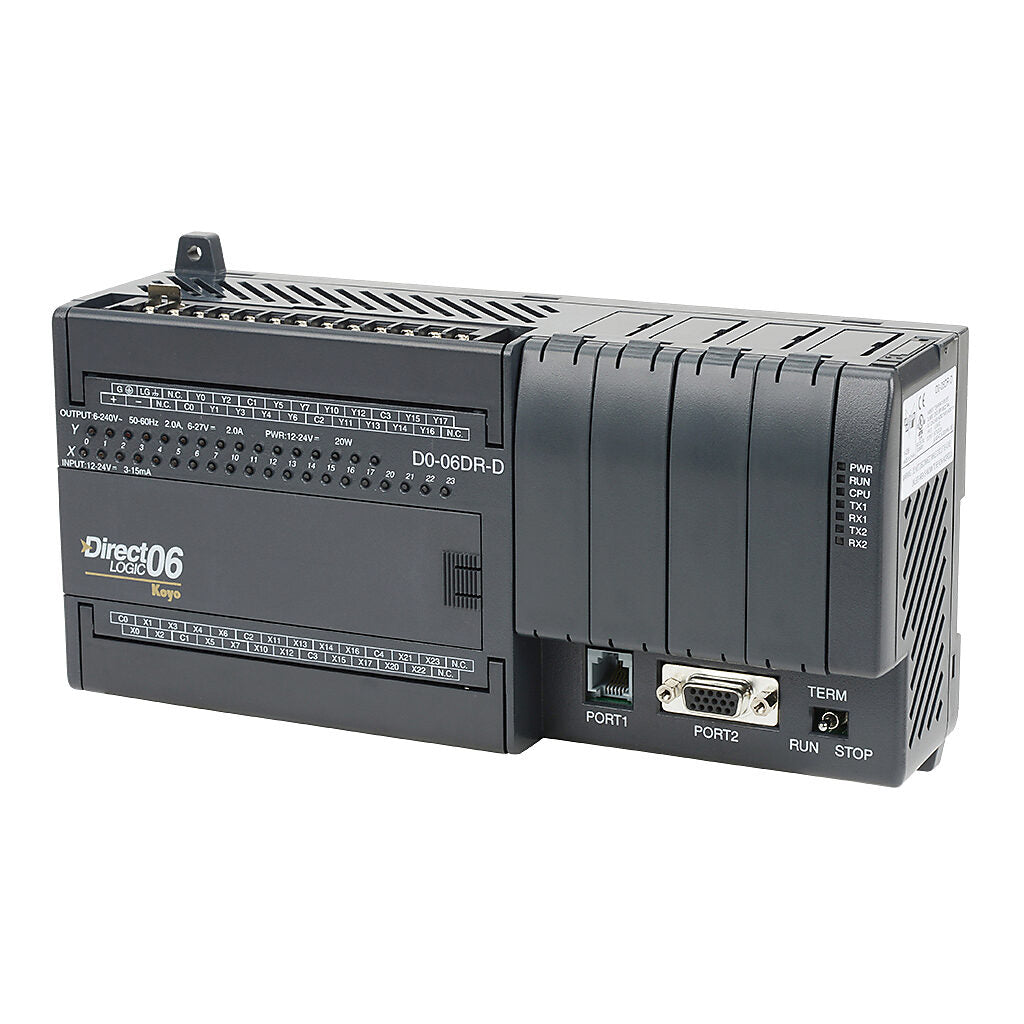

The Direct Logic D0-06DR-D has two ports.

Port 1:  ​RS–232C​ ​communication​ ​port.

Port 2: ​RS232C/RS422/RS485​ ​port​ supports many devices with a serial port. 20 DC inputs and 16 relay contact outputs are also included in the D0-06DR-D.

A switch on the DL06 device enables you to access the operating modes. Also, programming software gives you access to the modes. Use the modes to assist in programming.

Specifications:

External power is only between 12 through 24 VDC, 20 Watts or less.

Input voltage: Rated as limited from 10.8 through 26.4 VDC (standard and high-speed).

The operating voltage range is 12-24 VDC (standard/high-speed).

5 banks with 4 inputs in each bank (20 inputs).

One common terminal for each bank (sinking inputs or sourcing inputs).

Relay range for output voltage:  from 5 to 264 VAC (47-63 Hz)

Voltage range during operation from 6 to 240 VAC (47-63 Hz) and 6-27 VDC.

4 banks with four outputs are available. The relay contacts are generally open.

Every bank has one terminal.

Only between 32ºF and 131ºF (0º to 55ºC) is the allowed environmental temperature.  The humidity must be from 5 through 95% relative humidity (non-condensing).

​To use programming​ ​software, such​ ​as​ ​​DirectSOFT​ ​5 use Port 1 or Port 2 to connect to a laptop.

Port​ ​1​ ​on​ ​the​ ​D0-06DR-D​ ​is​ ​a​ ​6-pin​ ​modular​ ​connector.​ ​Port​ ​2​ ​is​ ​a​ ​15-pin​ ​HD-sub connector​ ​and​ ​offers​ ​RS-232,​ ​RS-422,​ ​or​ ​RS-485​ ​communications.
