D2-FILL

The D2-FILL is one of several specialty modules available for the DL205 series from DirectLogic.

The DL205 system is composed of a number of different input/output modules, CPUs, and specialty modules.  These can be combined with DL205 bases that each include their own built-in power supply to create your own specially designed PLC system.

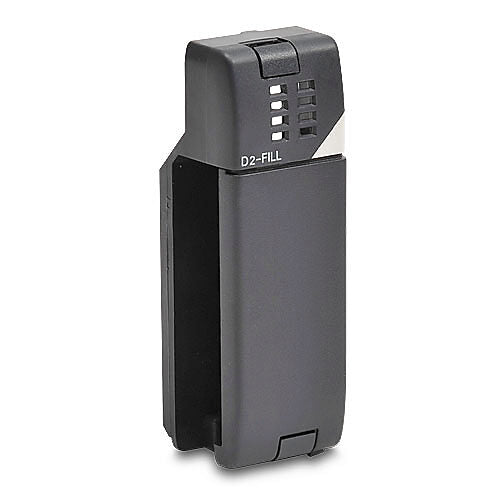

The D2-FILL filler module can be used in both local CPU bases as well as remote bases.  It weighs approximately 0.7 ounces of 20 grams.  The unit includes a front faceplate with the upper and lower clip like other DL205 modules that is used to keep modules in place after insertion into a rack.  The faceplate is marked with the unit’s ID number.

Because this is a filler module, the faceplate does not attach to any sort of circuit board or other components.  The filler module is simply used to fill up an empty spot you may have in your rack system.

Part Number: D2-FILL
