IR 51 IR Illuminator 180 deg

IR 51 IR Illuminator 180 deg

Elenek
R 0.00
R 0.00
Sold out

Elenek

IR 51

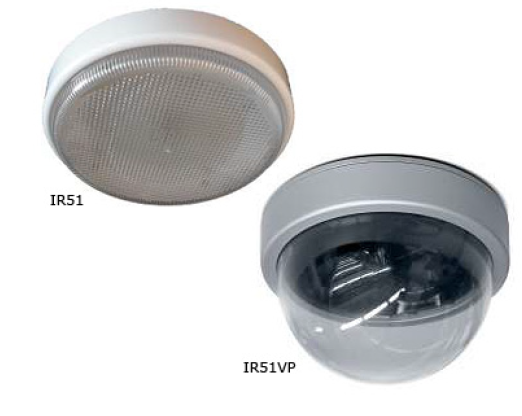

Infra-red illuminator, intended for outdoor and indoor use, specially designed for the Mobotix Q24IP camera.

In order to provide the best possible IR illumination for the MobotixQ24 camera, the IR51
illuminator should be installed as close as possible to the Q24 camera.
In that case, the IR51 reflector will provide high-quality infrared illumination for the
Q24 camera, sufficient to view a complete room of normal dimensions.



DATA/SPECS
Characteristics IR51 IR51VP
Illumination angle (degrees) 180 hemisphere
The range of IR illumination when using a camera with a sensitivity of 0.08 lux 10 m
The range of IR illumination when using a high sensitivity camera is 0.003 lux 15 m
Wavelength 850 NM
Power supply 11-14 V
Force 25 W
Dimensions 170 x 35 mm 115 x 90 mm

Part Number: IR51
