F2-04THM

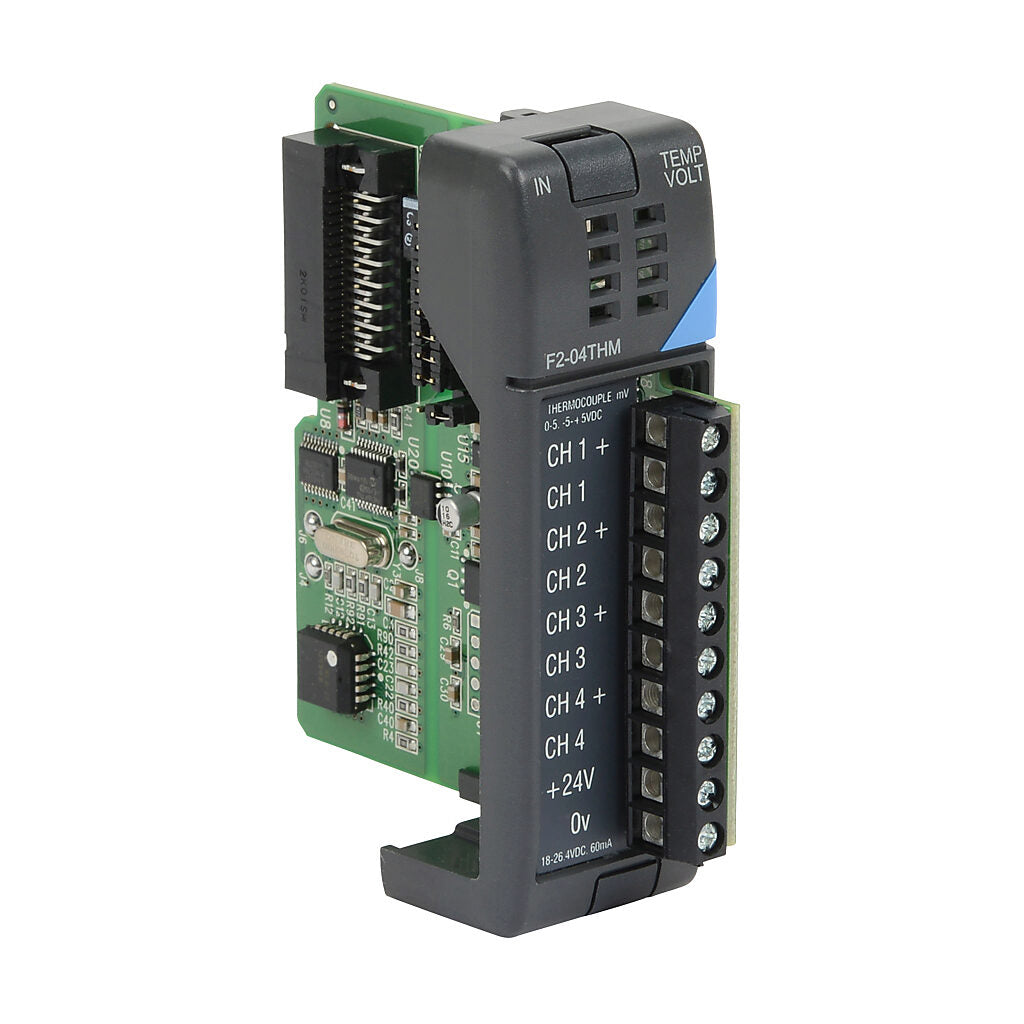

The F2-04THM, 4-Channel Thermocouple Input Module contains four thermocouple input channels with 0.1℉ temperature resolution. The F2-04THM, 4-Channel Thermocouple Input Module contains features to improve reliability, usability, and flexibility.

The module can be configured to show the temperature in ℃ or ℉.

Data from the National Institute of Standards and Technology (NIST) is used for temperature calculation and linearization.

Detection of thermocouple burnout or disconnection are some of the diagnostic features.

Automatic cold junction compensation, thermocouple linearization, and digital filtering are some of the signal processing features the module contains.

The F2-04THM, 4-Channel Thermocouple  Input Module is a 4-channel analog resistive temperature detector input module. The number of channels is 4 differential inputs. The resolution is 16 bit (1 in 65535). The power budget requirement is 110mA maximum, 18-26.4 VDC. The environmental air requirement is no corrosive gases permitted.  The operating temperature is 0-60°C (32-140°F). The relative humidity 5–95% (non-condensing).

The PLC update rate is 4 channels per scan maximum using DL240 and DL250 with 1/260 CPU. 1 channel per scan, maximum using the DL230 CPU. The common mode range ±5VDC. Consider that if a DL230 CPU is used and if the module is placed so the input points do not start on a V-memory boundary, the instructions cannot access the data.

Part Number: F2-04THM
