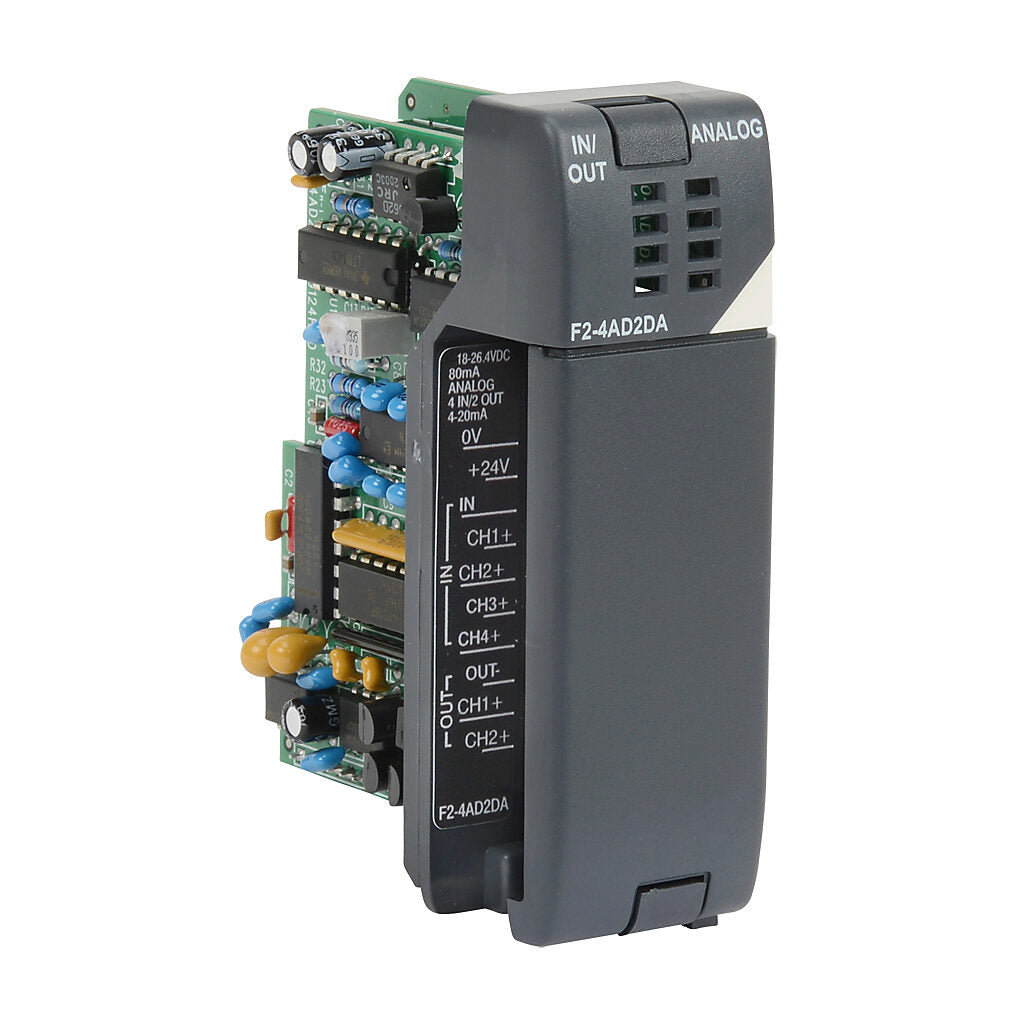

F2-4AD2DA

The F2-4AD2DA is an analog current input/output module. It has several basic features including onboard resistors that are rated to provide overcurrent protection for 4-20mA loops, it needs less than 80mA of power from a 24VDC external power supply, and it has a removable terminal block that can be swapped out without actually needing to disconnect any wiring.

The F2-4AD2DA has 4 single-ended input channels and 12-bit resolution. It has 2 single-ended output connections.  It has a 4-20mA range. It has a 10mc to 95% step response. It requires 16-point X Inputs and 16-point Y outputs. It is recommended that this device not be stored around corrosive gasses and be kept at -20 to 70 degrees Celsius. It needs a 24VCD, 80mA external power supply.

Part Number: F2-4AD2DA
