HEE-046-FC/N(47-92)

HEE-046-FC/N(47-92)

Wain
R 0.00
R 0.00
Sold out

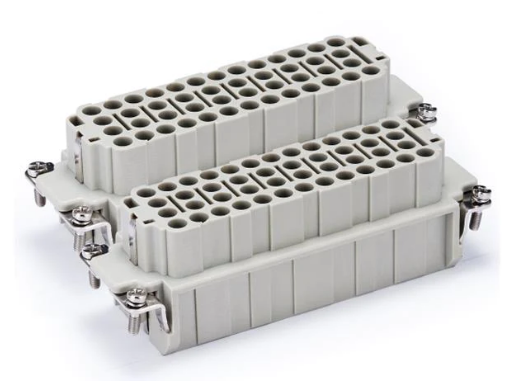

Series 92EEE (C) Insert 46P+E - Size 48B -  Female Enhanced Crimp Termination 16A/500V -Numbered 47-92
Article No. 123 046 020 0102
Industry No. 09320463111
Size: 48B
Series: 92EEE (C)

Inserts
Number of contacts 92(2x46)+PE
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage  500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 830V 8kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm2
---AWG 26-12
---Stripping length 7.5mm
