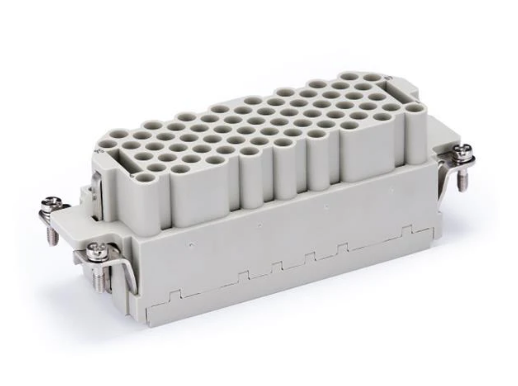

HEE-064-FC

SPECIFICATIONS

Inserts
Number of contacts	64+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 830V 8kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
Surface	hard-silver plated
Contact resistance	≤1mΩ
Crimp terminal
---Wrie gauge	0.14-4.0mm²
---AWG	26-12
---Stripping length	7.5mm
