HQ-005/0-FC

HQ-005/0-FC

Wain
R 0.00
R 0.00
Sold out

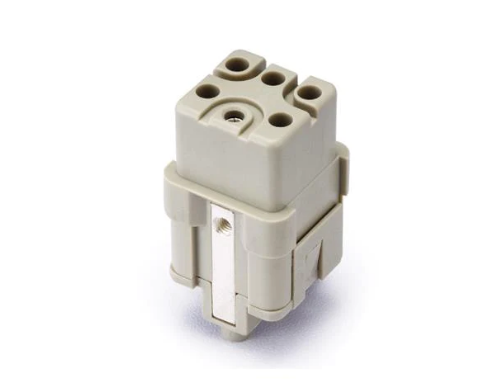

Series Q5/0 (C) Insert 5P+E - Size 3A - Female Crimp Termination 16A/230V/400V
Article No. 130 005 020 0001
Industry No. 09120053101
Size: 3A
Series: Q5/0 (C)
Datasheet HQ-005/0-FC
Inserts
Number of contacts 5+PE
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor -ground 230V
---Rated voltage conductor -conductor 400V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 16A 320/500V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
hard-gold plated
Contact resistance ≤1mΩ
Crimp terminal
---mm2 0.14-2.5mm2
---AWG 26-14
PE screw terminal
---mm2 2.5mm2
---AWG

14

ACCESSORIES

Please Click here to view list of Accessories for Size 3A
