HQ-005/0-MC
HQ-005/0-MC
Regular price
R 0.00
Sale price
R 0.00
Regular price
In stock

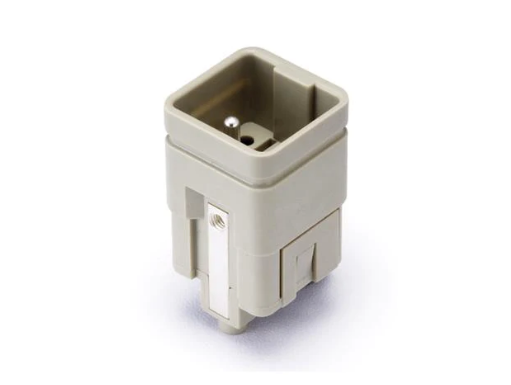

Series Q5/0 (C) Insert 5P+E - Size 3A - Male Crimp Termination 16A/230V/400V
Article No. 130 005 010 0001
Industry No. 09120053001
Size: 3A
Series: Q5/0 (C)
Datasheet HQ-005/0-MC
SPECIFICATIONS
| Inserts | |
| Number of contacts | 5+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor -ground | 230V |
| ---Rated voltage conductor -conductor | 400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 320/500V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| PE screw terminal | |
| ---mm2 | 2.5mm2 |
| ---AWG |
14 |
ACCESSORIES
Please Click here to view list of Accessories for Size 3A
