HQ-012/0-MC

HQ-012/0-MC

Wain
R 0.00
R 0.00
Sold out

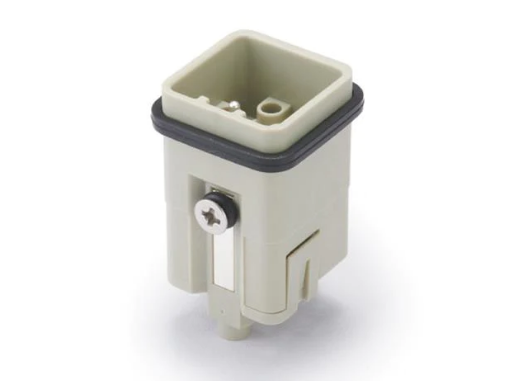

Series Q12/0 (C) Insert 12P+E - Size 3A - Male Crimp Termination 10A/400V
Article No. 130 012 010 0001
Industry No. 09120123001
Size: 3A
Series: Q12/0 (C)
Datasheet HQ-012/0-MC
Inserts
Number of contacts 12+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage 400V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 10A 400/690V 6kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
hard-gold plated
Contact resistance ≤3mΩ
Crimp terminal
---mm2 0.14-2.5mm2
---AWG 26-14
PE contact Screw terminal
---mm2 0.5-2.5mm2
---AWG

20-14
