RS20-1600M2M2SDAEHH - 943434005

Hirschmann

Fast Ethernet Ports with/without PoE The RS20 compact OpenRail managed Ethernet switches can accommodate from 4 to 25 port densities and are available with different Fast Ethernet uplink ports – all copper, or 1, 2 or 3 fiber ports. The fiber ports are available in multimode and/or singlemode. Gigabit Ethernet Ports with/without PoE The RS30 compact OpenRail managed Ethernet switches can accommodate from 8 to 24 port densities with 2 Gigabit ports and 8, 16 or 24 Fast Ethernet ports. The configuration includes 2 Gigabit ports with TX or SFP slots. The RS40 compact OpenRail managed Ethernet switches can accommodate 9 Gigabit ports. The configuration includes 4 x Combo Ports (10/100/1000BASE TX RJ45 plus FE/GE-SFP slot) and 5 x 10/100/1000BASE TX RJ45 ports

Part Number: 943434005

Product Description:

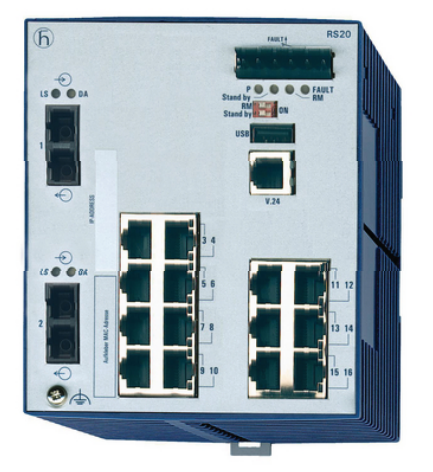

Managed Fast-Ethernet-Switch for DIN rail store-and-forward-switching, fanless design ; Software Layer 2 Enhanced

Port type and quantity:

16 ports in total: 14 x standard 10/100 BASE TX, RJ45 ; Uplink 1: 1 x 100BASE-FX, MM-SC ; Uplink 2: 1 x 100BASE-FX, MM-SC
